Belzona 1511 Super HT-Metal 1kg Kit Two Parts Metal Repair Composite Epoxy Resin Specially for High Temperature Operate Application Corrosion Protection Chemical Resistance Solvent Free

Belzona 1511 Super HT-Metal 1kg one Kit Base A 0.833kg + Solidifier B 0.167kg = 1kg A two-part repair composite based on a solvent-free epoxy resin reinforced silicon with steel alloy. This high temperature repair system is designed for metal repair and rebuilding equipment and provides excellent corrosion protection. Under immersion, suitable for applications up to 150 °C (302 °F). This product can be overcoated with Belzona high temperature coatings without the need for frost blasting, significantly reducing application costs and downtime. Will not corrode and resists a wide range of chemicals. This repair material can be easily mixed and applied without the need for specialist tools, and when cured is durable yet fully machinable. No frost blasting needed prior to overcoating with Belzona high temperature linings Excellent erosion and corrosion resistance Operates at high temperatures and resists a wide range of chemicals Can be easily mixed and applied at up to 12 mm thickness, enabling to fill even deeper pitting in one application Reduced health and safety risks as it is solvent-free No shrinkage, expansion or distortion Excellent adhesion to many metal surfaces including steel, stainless steel, specialist steels Outstanding mechanical properties High temperature epoxy repairs for process vessels, distillation columns, heat exchangers, clarifiers and scrubber units Repairs of cracks and holes on engine and pump casings, pipes, tanks and other equipment Resurface of pitted metal surfaces Working Life: At 68°F (20°C) the usable life of mixed material is 60 minutes. Application Temperature: 50°F/10°C to 104°F/40°C Overcoat Time: Max 24 hours. Colour: Grey Mixing Ratio by Weight (Base : Solidifier): 5:1

• Belzona 1511 Super HT-Metal. 1kg one Kit Set. Two Parts Base A 0.833kg + Solidifier B 0.167kg = 1kg. Metal Repair Composite Epoxy Resin. High Temperature Operate Application. Corrosion Protection Chemical Resistance. Solvent Free.
• For High temperature epoxy repairs for process vessels, distillation columns, heat exchangers, clarifiers and scrubber units. Repairs of cracks and holes on engine and pump casings, pipes, tanks and other equipment. Resurface of pitted metal surfaces. Excellent adhesion to many metal surfaces including steel, stainless steel, specialist steels.
• Operates at High Temperatures. Resists a wide range of chemicals. Excellent erosion and corrosion resistance. Outstanding mechanical properties. Reduced health and safety risks as it is solvent-free. No shrinkage, expansion or distortion.
• Cure Times table. (*Post Cure: ≥1 hour at min 122°F/50°C. Temperature increase ≤ 55°F/30°C per hour.) Light loading: 72 hrs at 10°C, 18 hrs at 20°C, 5 hrs at 30°C, 4 hrs at 40°C. Full mechanical or thermal loading: Post Cure* at 10°C, 30 hrs at 20°C, 24 hrs at 30°C, 6 hrs at 40°C. Immersion in chemicals: Post Cure* at 10°C, Post Cure* at 20°C, 60 hrs at 30°C, 8 hrs at 40°C.
• Appearance: Paste. Colour: Dark grey. Working Life Will vary according to temperature. At 68°F (20°C) the usable life of mixed material is 60 minutes. Application should occur in the following ambient temperature range: 50°F/10°C to 104°F/40°C. The maximum overcoat time is 24 hours. Volume Capacity 23.4 in³ (383 cm³)/kg.

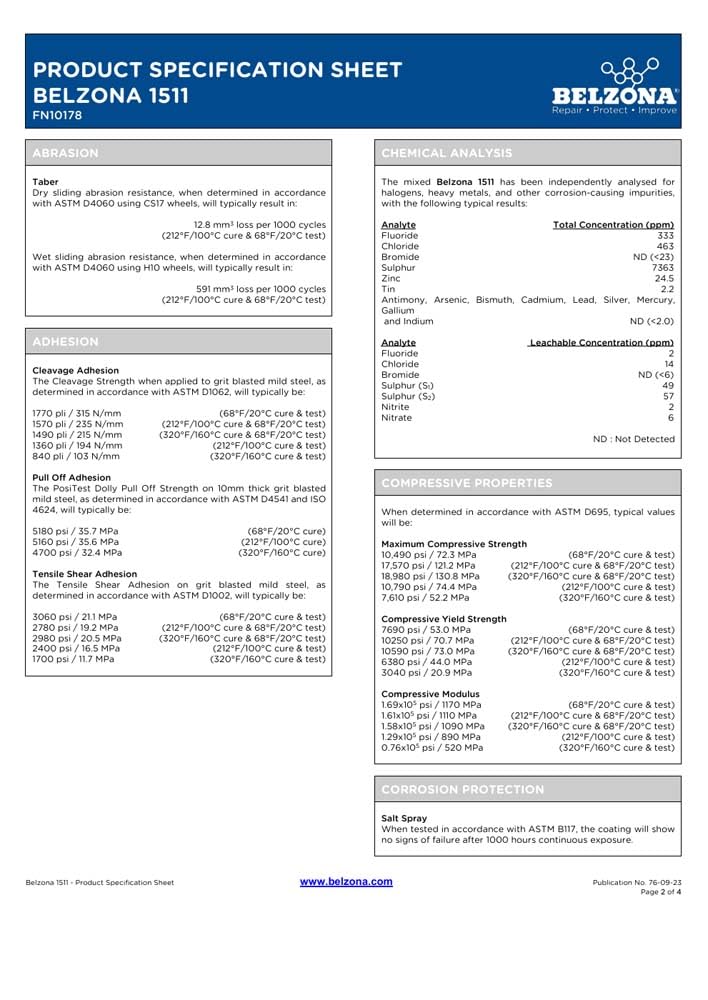

• Base Gel strength at 77°F (25°C): >120 g/cm QH. Base Density: 2.88 – 2.92 g/cm³. Solidifier Gel strength at 77°F (25°C): >30 g/cm QV. Solidifier Density: 1.72 – 1.76 g/cm³. Mixing Ratio by Weight (Base : Solidifier): 5:1. Slump Resistance: Nil at 0.5 inch (1.27 cm). Mixed Density: 2.61 g/cm³. VOC content (ASTM D2369 / EPA ref. 24): 0.06% / 1.66 g/L.
